10Pack Nema 17 Stepper Motor 2 Phase 1.8‌°‌ 0.84Nm(118.95oz·in) High Torque Bipolar 60mm 2.3A 1.1Ω 4-Lead Shaft 24mm φ5mm 42 Stepper Motor Cable 1M for 3D Printer DIY Robot CNC Machine

10Pack Nema 17 Stepper Motor 2 Section 1.8‌°‌ 0.84Nm(118.95oz·in) Excessive Torque Bipolar 60mm 2.3A 1.1Ω 4-Lead Shaft 24mm φ5mm 42 Stepper Motor Cable 1M for 3D Printer DIY Robotic CNC Machine
Product Dimensions ‏ : ‎ 2.34 x 1.66 x 1.66 inches; 11.16 Kilos
Date First Accessible ‏ : ‎ August 9, 2025
Producer ‏ : ‎ YEJMKJ
ASIN ‏ : ‎ B0FHHWFJST

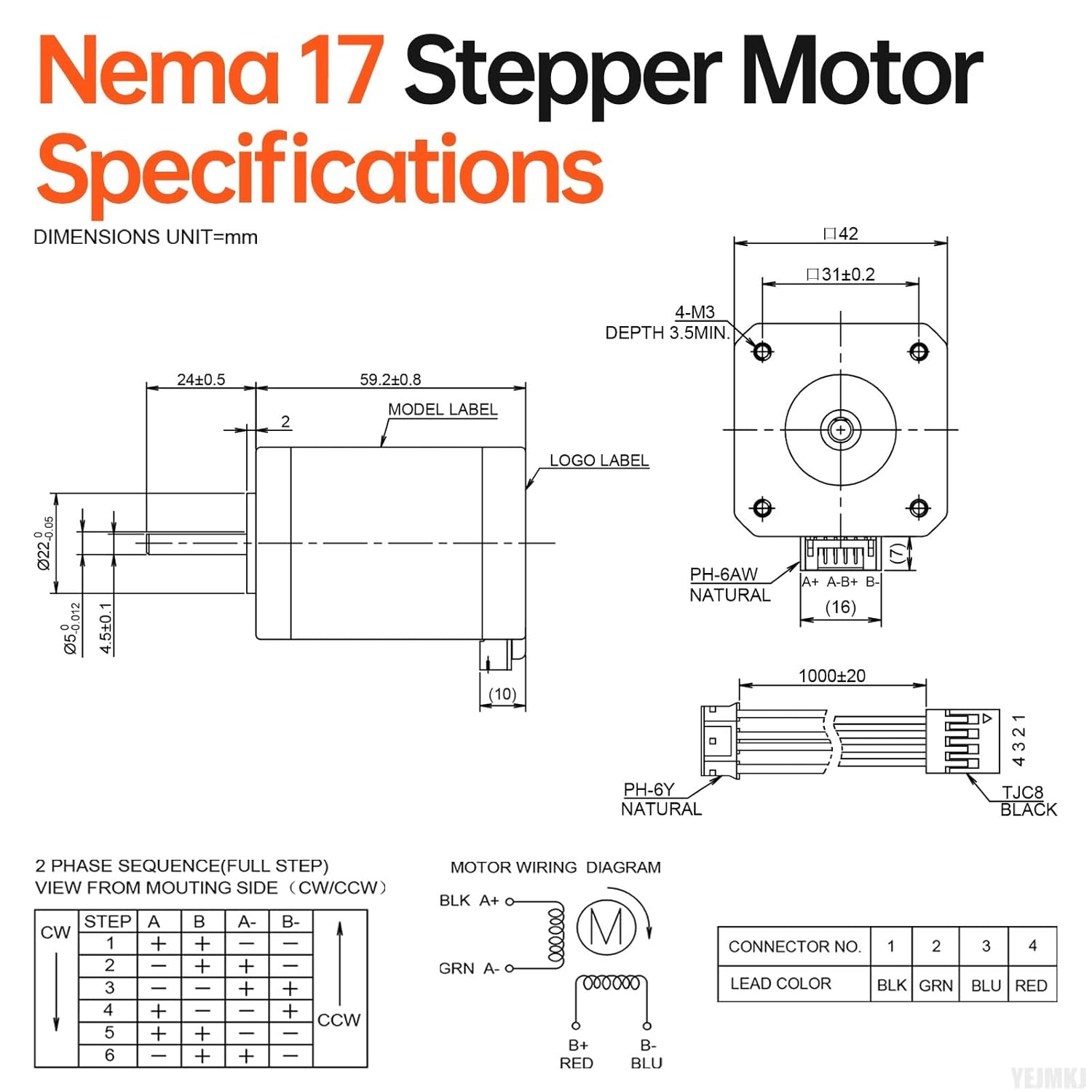

Dimensional particulars: The bodily dimensions of a Nema 17 Stepper Motor are summarized beneath. Physique dimension 42x42x59.2mm(1.66×1.66×2.34in), Shaft size 24±0.5mm, Shaft diameter φ5mm, D-cut size 24mm, Set up gap distance 31mm, Cable 1m, 4-Lead Black (A+) Inexperienced (A-) Pink (B+) Blue (B-), Weight 473g.

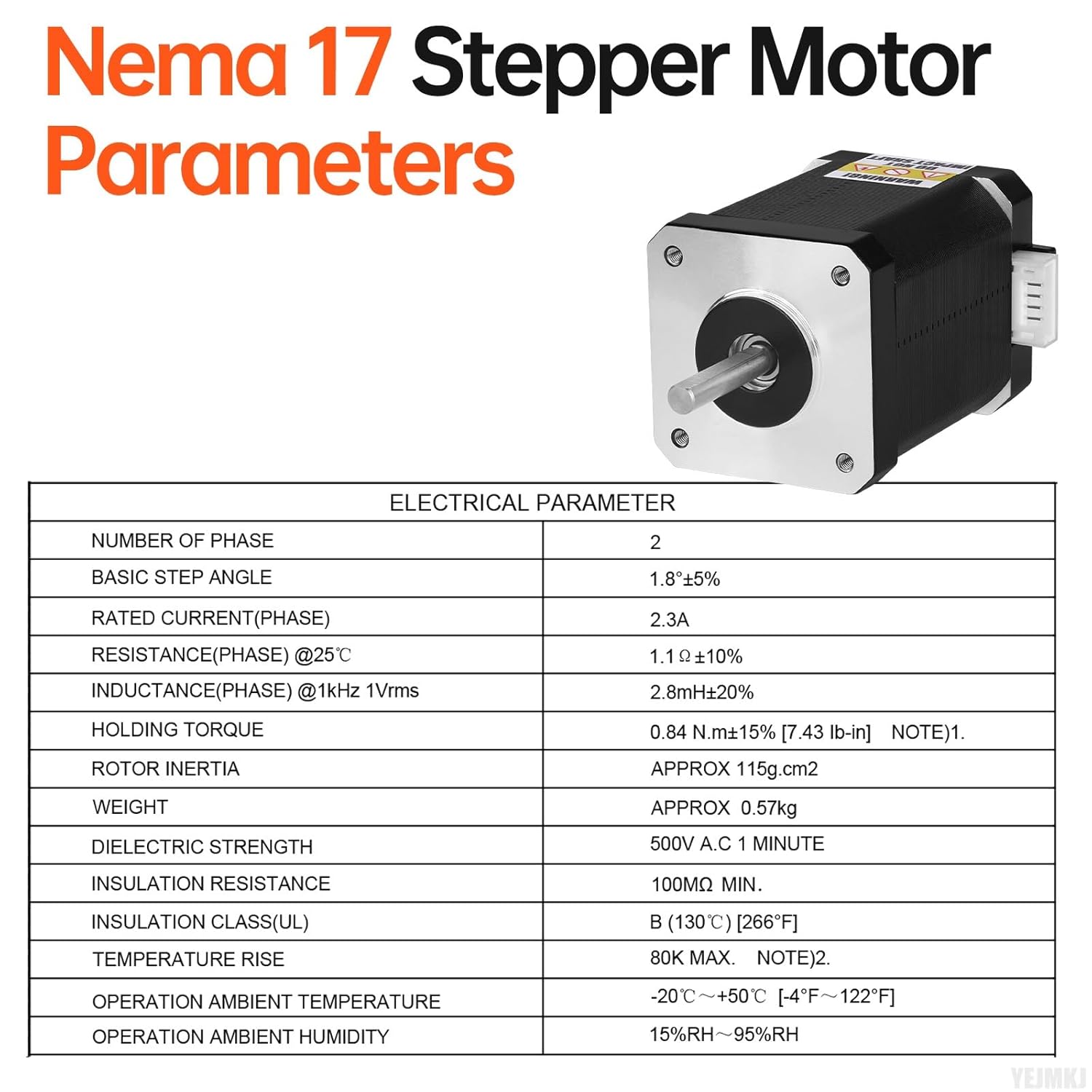

Traits: Nema 17 Stepper Motor 2 Section, Step angle 1.8‌ Diploma (200 steps/rev), Holding torque 0.84Nm (118.95oz·in), Rated present 2.3A, Resistance 1.1Ω, Inductance 2.8mH±20%, Rotor inertia approx 115g.cm².
Security: With secure and dependable operation, this 42 Step Motor options the next key security parameters. Dielectric power 500V A.C 1 MINUTE; Insulation class(UL) B (130℃) [266°F]; Insulation resistance 100MΩ MIN; Temperature rise 80K MAX; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15percentRH～95percentRH.
Necessary Insights: Elevated pace reduces torque, with operation urged at 0–600 RPM. A decrease present results in decrease torque and temperature rise, and lowered voltage leads to decrease torque (advisable vary: 12–24V DC). The 42mm Stepper Motor matches 3D printers, DIY robots, CNC machines, and different automated methods, providing a small dimension and excessive torque for performance-driven duties.
Clean, Highly effective Drive: Leveraging bolstered metal cores and meticulously wound coils, this Nema 17 Step Motor presents as much as 20% elevated holding torque versus commonplace models. Profit from a quieter operational profile and minimal environmental disturbance.
