23 180W 0.6Nm 57mm Integrated Servo Motor & Drive Easy Engine 36VDC iHSV57-30-18-36 for CNC Router Engraving Machine Kits(Pulse (Step-DIR))

Motors
Hign-concerned Chemical : None
Mannequin Quantity : IHSV57-30-18-36
Section : Three-phase
Shield Characteristic : Waterproof
Kind : Servo Motor
Effectivity : IE 4
AC Voltage : 36VDC
Origin :
Output Voltage : DC24-60V
Section : Three-phase
Rated Velocity : 3000rpm
No Load Velocity : 4200rpm
Rated Present : 7.5A
No Load Present : 0.65A
Rated Energy : 180W
Rated Voltage : 36VDC
Holding : 0.6N.m
Line-line : 0.53±10%
Line-line Industant : 0.58mH±20%
Motor Kind : Hybrid Brushless Servo Motor
Shield Characteristic : Completely Enclosed

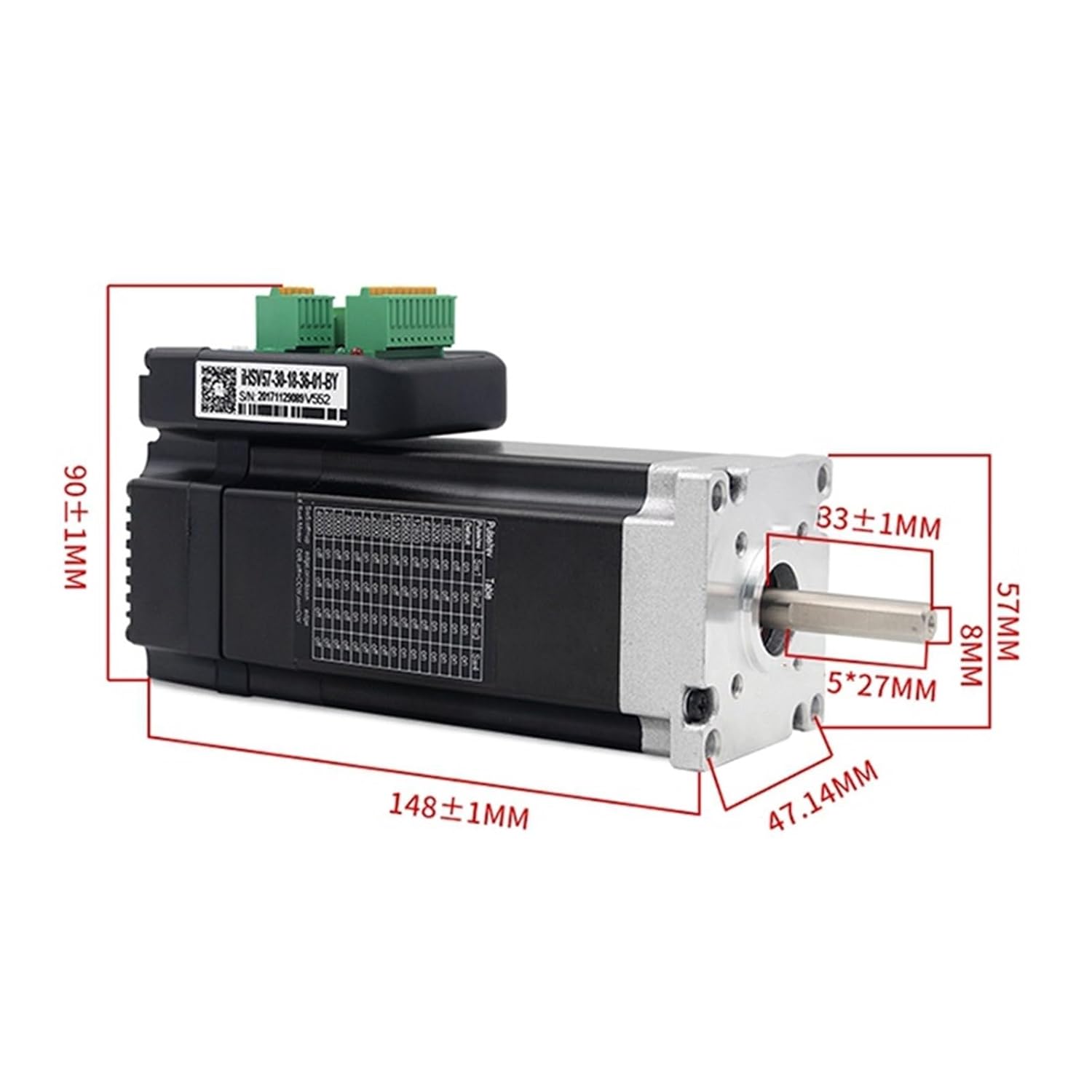

Motor Size : 148mm
Body Measurement : 23 (57mm)
Rotor Inertia : 30kg.mm²
Purposes : CNC Router Labeling Machine Kits
Bundle Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.76 ounces
Merchandise mannequin quantity ‏ : ‎ DFHQULMO
Date First Obtainable ‏ : ‎ August 15, 2025
Producer ‏ : ‎ DFHQULMO
ASIN ‏ : ‎ B0FMKG274B
Motors
23 180W 0.6Nm 57mm Built-in Servo Motor & Drive Straightforward Engine 36VDC iHSV57-30-18-36 for CNC Router Engraving Machine Kits
