3 Axis Stepper Motor CNC Controller Kit with Nema 23 57mm Stepper Motor 3Nm 425 oz.in 2-Phase 3A, DM556 Step Motor Driver, 350W Power Supply, Mach3 Control Card for Engraving Machine

Product Description

PACKAGE LIST

you’re going to get the observe:

3* Nema 23 Stepper Motor 3Nm

3* DM556 Stepper Motor Driver

1* 350w Energy

1* Mach3 Management Card

Motor Kind 57mm Nema 23 Stepper Motor Step Angle 1.8 diploma (200 steps/rev) Shaft Diameter Φ8mm (D Shaft Φ7.5mm) Rated Present 3.0A Section 2 Variety of Lead 4 Holding Torque 3Nm/425oz.in Section Resistance 1.6±10% ohms(Ω) Section Inductance 6.8±20%(mH) Motor Measurement 57x57x112mm/2.24 x2.24 x4.41 inch

Holding Torque: 285oz.in/2Nm

Body Measurement: 57 x 57 x 80 mm

Physique Size: 80mm

Our motor is fabricated from stable and sturdy steel. The proper mixture of rubber and rotor makes the inner construction extra steady, and in addition reduces the vibration and noise when the engine runs.

Linked

Linked to work: 2 ph 4-Lead wires: Black (A+), Inexperienced (A-), Pink (B+), Blue (B-). Or Pink (A+), Inexperienced (A-), Yellow(B+), Blue (B-). Or Pink (A+), White(A-), Yellow(B+), Blue (B-). Nema 23 stepper motor run quietly and effectively, making a harmonious and productive working setting.

Torque Diagram

In comparison with smaller stepper motors like Nema 17, a Nema 23 stepper motor usually provides greater torque and might deal with heavier masses.

Energy Provide Parameter:

Mannequin: S-350-24

Rated Load: 350W (Max Load)

Enter Voltage: AC 100-120V/200-245 VAC 50/60Hz

Output Voltage:DC24V (Fixed Voltage)

Output Present:14.6A

Conversion Effectivity:greater than 80%

Working temperature:-30~+50

IP code:IP20

Cooling kind:Fan Cooling (Fan Work With somewhat noise)

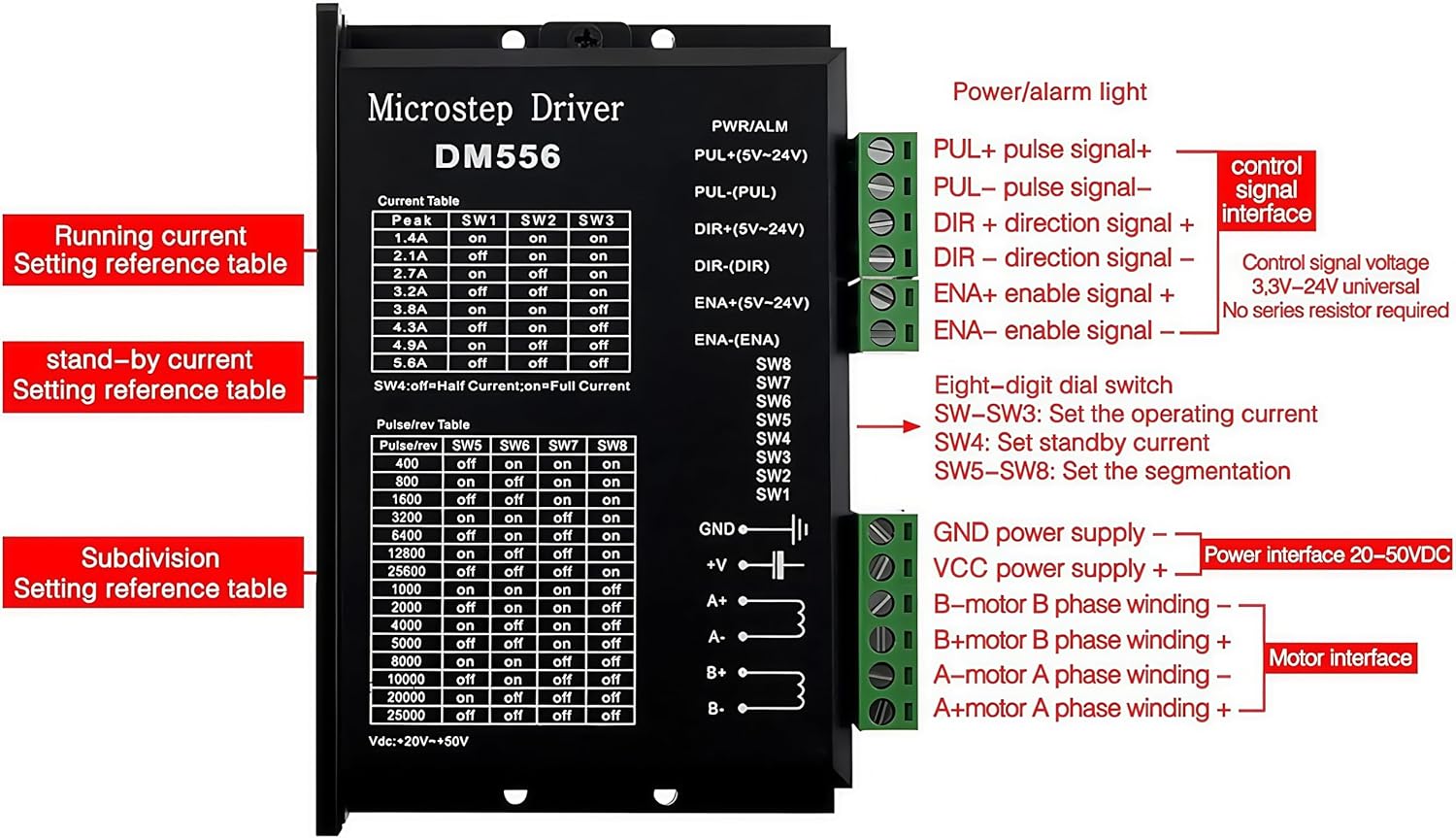

Driver Specs:

Mannequin:DM556 Tailored motor: 42mm/57mm/86mm flange stepper motor Enter voltage:DC 20-50V Output present: 1.0-5.6A, 8 stage adjustable, 0.5A decision Driver technique: Bipolar fixed present PWM drive Pulse response frequency:200kHz(Max) Insulation resistance: 500MΩ Insulation energy:500V/min Dimensions: 118*75.5*34mm / 4.6*3.0*1.3in Cooling technique: Pure cooling or Pressured air cooling Working setting temperature: -5℃ ～ +50℃ Utility:Appropriate for varied small and medium-sized automation tools and devices, equivalent to: engraving machine, marking machine, reducing machine, laser phototypesetting, drawing Instrument, CNC machine software, automated meeting tools, and so forth.

Comaptible with MACH3 software program

1. Help home windows XP, WIN7, WIN8, WIN10, help pill computer systems, in addition to 64-bit methods.

2. Exterior huge voltage enter, 12-24V, and anti-reverse connection perform.

3. All enter indicators are remoted by optical coupling, which will be related to emergency cease, software setting, restrict, return to zero, and so forth., to make sure laptop security.

4. It gives 0-10V analog voltage output remoted by optocoupler, and might management the frequency converter enter by 0-10V analog voltage to regulate the spindle velocity.

5. Present PWM output (5V stage) remoted by optocoupler to regulate different PWM managed spindle velocity controllers.

5 axis cnc mach3 interface board

CNC 5 axis Mach3

1. Present 4 output ports (5V stage), which will be related to a relay module with optocoupler to regulate water cooling, spray, and so forth.

2. It may be related to a stepping motor driver with a typical anode or frequent cathode enter, a stage of 5V, and an optocoupler enter.

3. On the identical time, a 5-axis interface cable socket (HX2.54) is supplied, which is handy for connecting the stepper motor driver.

Skilled CNC Controller Package: It is a skilled 3d printer DIY equipment fabricated from excessive premium supplies. The DIY equipment contains 3 pcs Nema23 stepper motors, 3 pcs drivers, 1 computer energy provide, and 1pc USB Mach3 management board, able to assembly your numerous wants.
3 Pcs Nema 23 57mm Stepper Motor: 3Nm/300Ncm 425oz.in holding torque, nema 23 step motor measurement 57x57x112mm/2.24 x2.24 x4.4 inch. Present: 3A; 1.8 deg. step angle(200 steps/rev), 2 part 4-lead wires; shaft diameter: 8mm ( D shaft Φ 7.5mm ), part inductance 6.8±20%(mH) & resistance 1.6±10% ohms(Ω).
3 Pcs DM556 Driver: DM556 driver Voltage: DC 20V-50V, which is appropriate for all two-phase hybrid stepping motors with present lower than 5.6A. There are 15 sorts of micro steps, and the output present has 8 gears. The motor pushed by dm556 has much less noise and vibration than different drivers (like TB6600) in the marketplace.
Secure output 350W 24V DC energy provide: Over-current, over-voltage and overload safety, energy provide steady energy provide, electrical power conversion charge of as much as 90%, greater effectivity. Shell hole design, warmth dissipation potential sooner and stronger, extra sturdy efficiency. AC enter voltage vary: 100V or 240V AC; chosen by change to decide on enter voltage.
Capabilities of the Mach3 Management Board: It helps 5-axis linkage management at most. Robust anti-interference and excessive reliability.
