425Ozin Nema23 57HS112 57mm x 112mm 3Nm 3A Stepper Motor with DM556 Hybrid Step Driver for Engraver Milling Machine

Mannequin No
Step Angle
(°)
Rated
Voltage
(V)
Rated
Present
(A)
Section
Resistance
()
Section
Inductance
(mH)
Holding
Torque
(Kg.cm)
Detent
Torque
(G.cm Max)
Rotor
Inertia
(g.cm^2)
Motor
Size
(mm)
Lead
Wires
No.
Motor
Weight
(Kg)
57hs56-3004
1.8
2.85
3 0.95
2.8
12
400
300
56
4 0.7
57hs76-3004
1.8
2.7
3 0.9
3.5
20
680
480
76
4 1
57hs82-3004
1.8
3 3 1.4
5 22
700
510
82
4 1.2
57hs100-3004
1.8
3 3 1 4.5
25
1000
680
100
4 1.4
57hs112-4004
1.8
3.6
4 0.9
4 30
1200
800
112
4 1.7
57hs112-3004
1.8
3.9
3 1.3
6.5
30
1200
800
112
4 1.7
All of the motor have twin shaftversion. Click on Mannequin to see particulars.
Present / Section : 3A
Holding Torque : 3Nm
Step Angle(levels) : 1.8
Section : 2
Mannequin Quantity : 57HS1123004
Kind : HYBRID
Motor Size : 112mm
Motor Shaft Diameter : 8mm D form

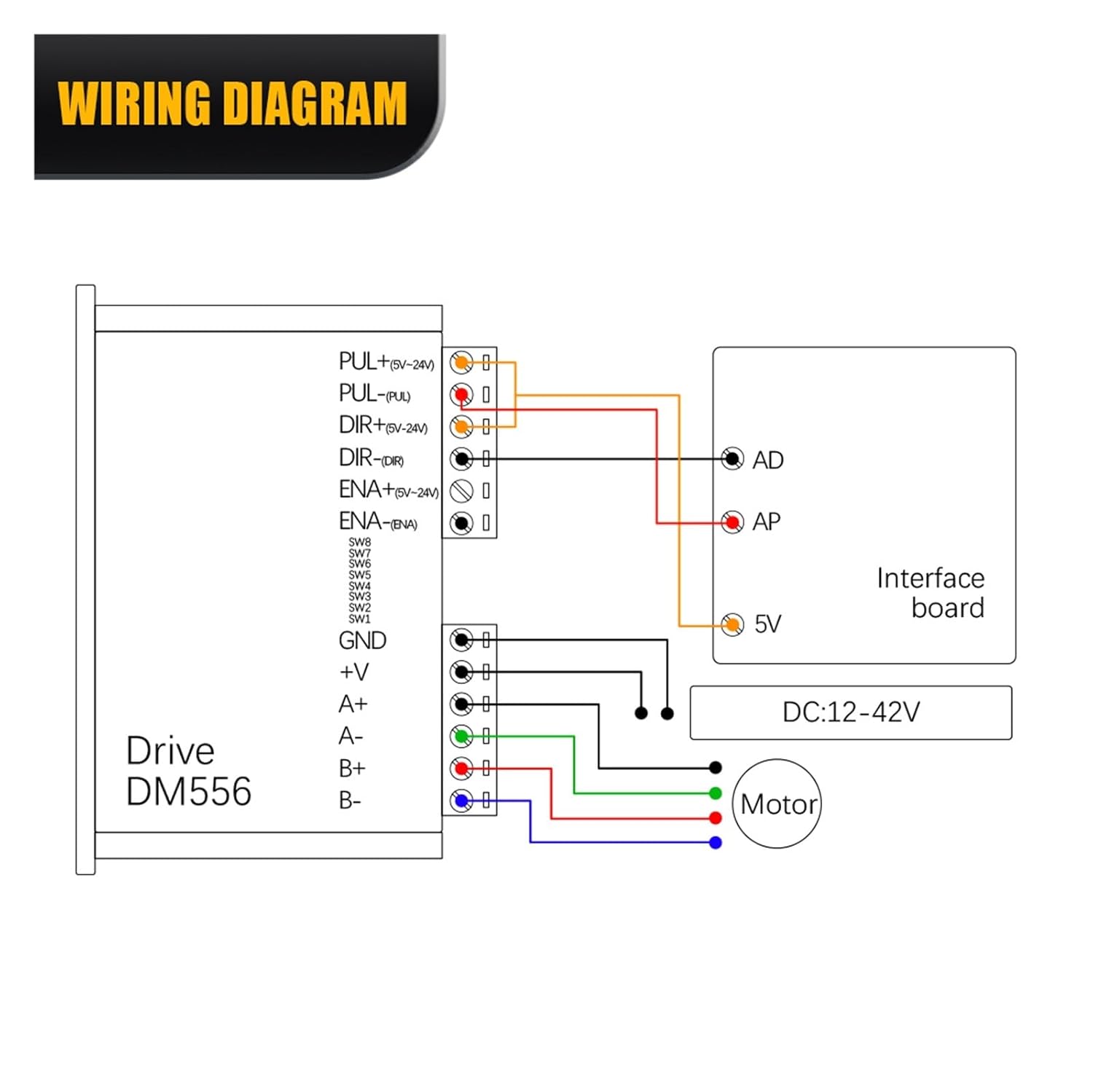

Driver : DM556
product identify : 425Ozin Nema23 57HS112 57mm x 112mm 3Nm 3A Stepper Motor
Bundle Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.76 ounces
Merchandise mannequin quantity ‏ : ‎ CPBGXJZD
Date First Out there ‏ : ‎ August 16, 2025
Producer ‏ : ‎ CPBGXJZD
ASIN ‏ : ‎ B0FMP8TPY4
CPBGXJZD 425Ozin Nema23 57HS112 57mm x 112mm 3Nm 3A Stepper Motor with DM556 Hybrid Step Driver for Engraver Milling Machine
