MakerFocus CubeCell Dev-Board SX1262 915MHZ LoRa ASR6502 MCU 128KB Flash Ultra Low Power Consumption Solar Energy Powered Design with Antenna for Arduino Intelligent Scene

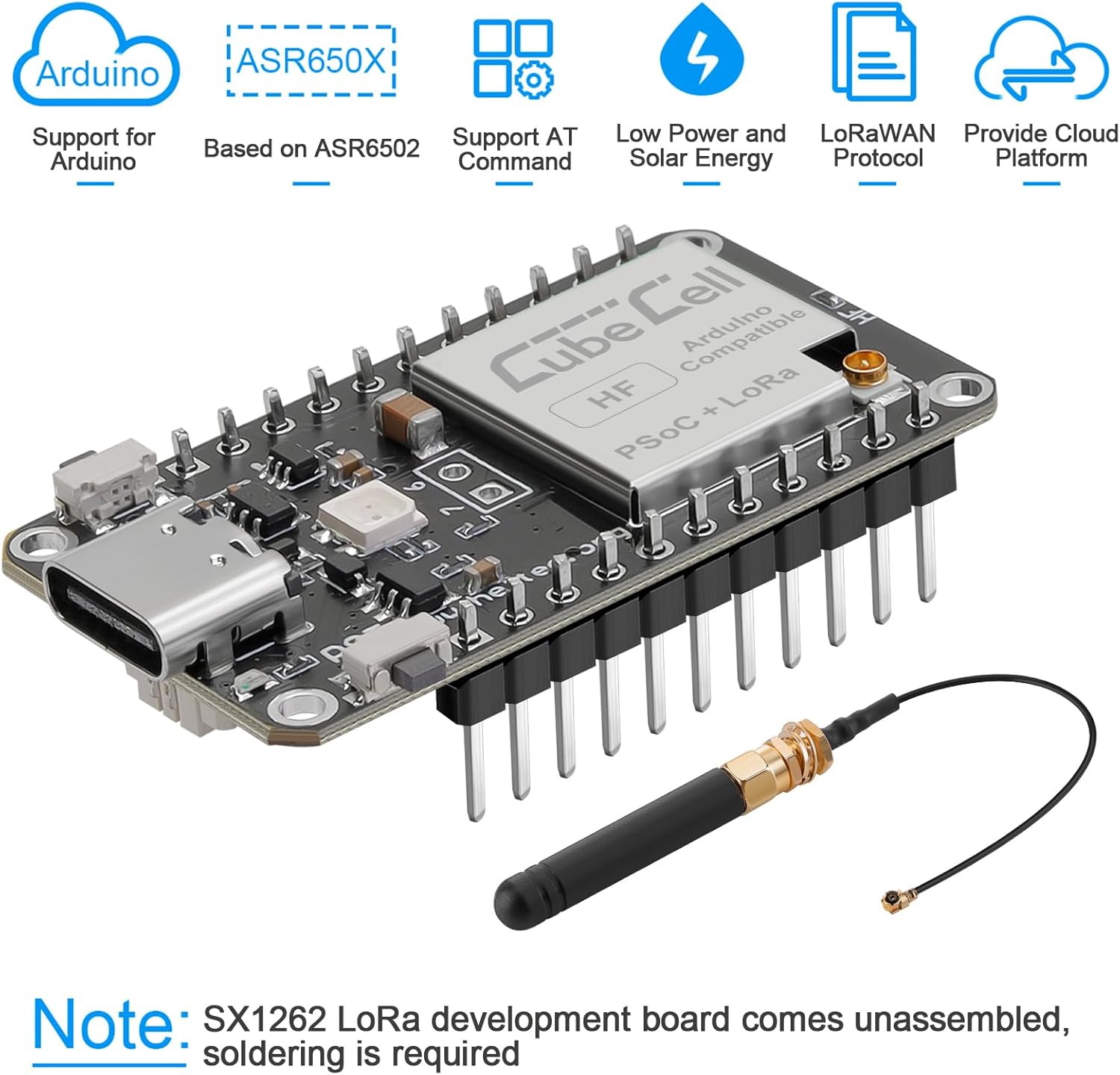

CubeCell – Dev-Board is especially for LoRa/LoRaWAN node purposes
CubeCell – Dev-Board is predicated on ASR6052, the chip is already built-in with the P SoC 4000 sequence MCU and SX1262. We’ve got finished a whole lot of migration and growth, made it completely assist Ar duino, can run the LoRaWAN protocol stably and might simply join lithium batteries and photo voltaic panels
Options:
Good Ar duino suitable
LoRaWAN 1.0.2 assist
Extremely low energy design, 3.5uA in deep sleep
Onboard photo voltaic vitality administration system, can instantly join with a 5.5~7V photo voltaic panel

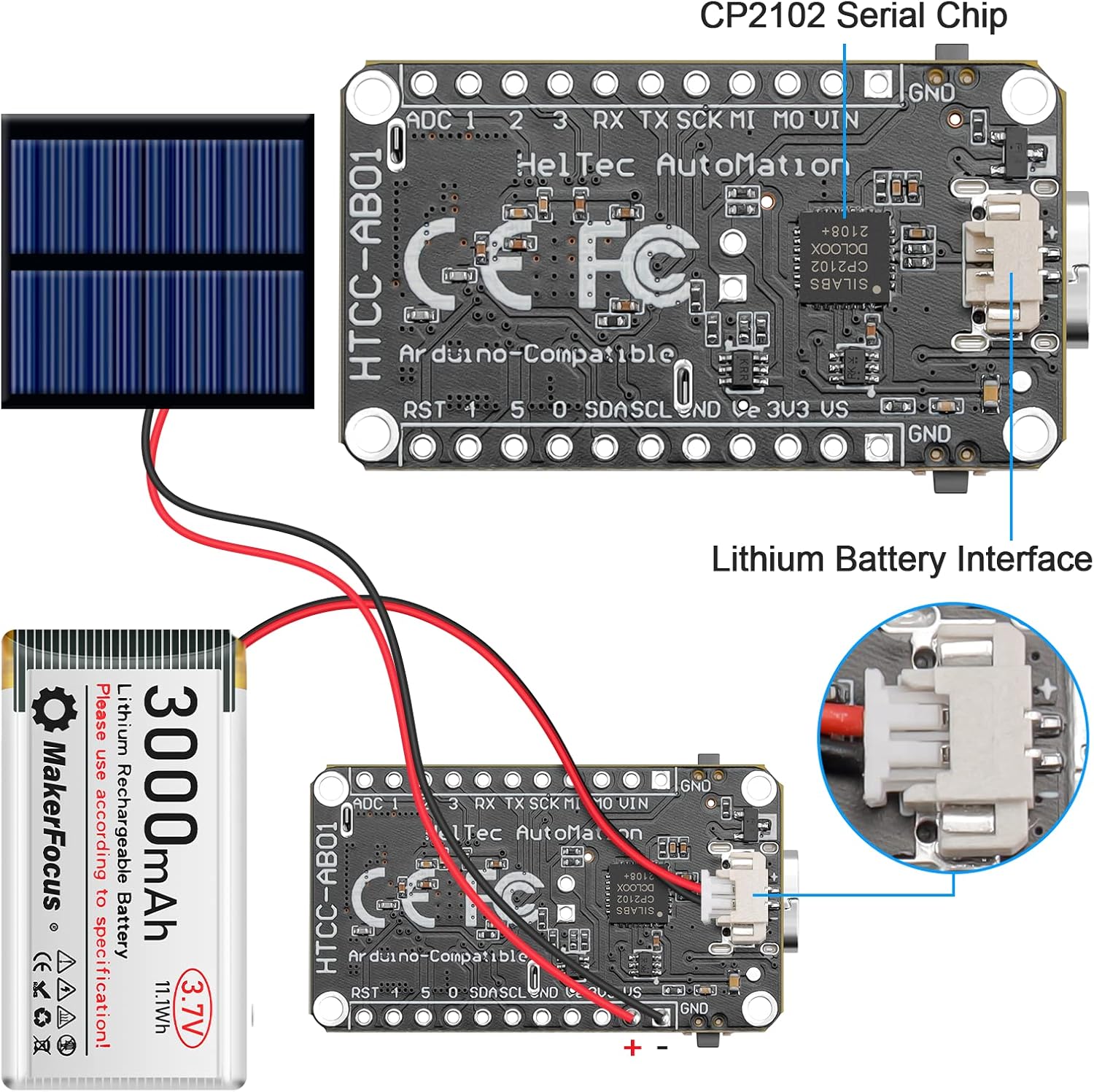

Onboard SH1.25-2 battery interface, built-in lithium battery administration system (cost and discharge administration, overcharge safety, battery energy detection, USB / battery energy automated switching)
Sort-C interface with full ESD safety, quick circuit safety, RF shielding and different safety measures
Built-in CP 2102 USB to serial port chip, handy for program downloading, debugging info printing
Good impedance matching and lengthy communication distance
Parameter:
Grasp Chip: ASR6502
Lora Chipset: SX1262
Max Tx Energy: 21±1dbm
Receiving Sensitivity: -139dbm
USB to Serial Chip: CP2102
{Hardware} Useful resource: 1*SPI; 1*I2c; 1*Uart; 1*12-Bit ADA; 1*SWD; 8*GPIO; 2*PWM; 8-Channel DMA Engine
Reminiscence: 128kbites Flash; 16kbites SRAM
Interface: Sort-C USB; LoRa Ant (IPEX 1.0); SH1.25; 2*2.54*11 Pin Header; 1*2.54*2 Pin Header
Battery: 3.7v Lithium Battery Energy Provide and Charging
Photo voltaic Power: VS Pin Might be Linked To five.5 ~ 7V Photo voltaic Panel
Energy Consumption: Deep Sleep 3.5uA
Working Temperature: -20~70℃
Dimensions: 40.64 * 22.86 * 7.6 mm
Package deal Content material:
1 * CubeCell Dev-Board
1 * Antenna
1 * Battery Energy Twine
CubeCell Dev-Board: Pleasant designed for builders, simple to confirm communication options
Extremely Low Energy Design: 3.5uA in deep sleep. Onboard photo voltaic vitality administration system, can instantly join with a 5.5~7V photo voltaic panel; Onboard SH1.25-2 battery interface, built-in lithium battery administration system (cost and discharge administration,overcharge safety,battery energy detection,USB/battery energy automated switching)
Good Circuit Design: Based mostly on ASR6502, built-in CP2102 USB to serial port chip, handy for program downloading, debugging info printing
Strongest Safety: Sort C interface with full ESD safety,quick circuit safety, RF shielding,and different safety measures
Glorious Function: Completely suitable with Arduino; good impedance matching and lengthy communication distance
Vast Vary of Software Eventualities: Good agriculture, scenic space administration, business 4.0, city lighting
