Nema 17 Stepper Motor 2 Phase 1.8‌°‌ 0.84Nm(118.95oz·in) High Torque Bipolar 60mm 2.3A 1.1Ω 4-Wire Shaft 24mm φ5mm 42 Stepper Motor Cable 1M for 3D Printer DIY Robot CNC Machine

Nema 17 Stepper Motor 2 Part 1.8‌°‌ 0.84Nm(118.95oz·in) Excessive Torque Bipolar 60mm 2.3A 1.1Ω 4-Wire Shaft 24mm φ5mm 42 Stepper Motor Cable 1M for 3D Printer DIY Robotic CNC Machine
Product Dimensions ‏ : ‎ 2.34 x 1.66 x 1.66 inches; 1.17 Kilos
Date First Out there ‏ : ‎ August 11, 2025
Producer ‏ : ‎ YEJMKJ
ASIN ‏ : ‎ B0FHHT9D42
Specs: Nema 17 Stepper Motor has the next varied dimensional parameters. Physique dimension 42x42x59.2mm, (1.66×1.66×2.34in), Set up gap distance 31mm, Shaft size 24±0.5mm, Shaft diameter φ5mm, D-cut size 24mm, Cable 1m, 4-Wire Black (A+) Inexperienced (A-) Crimson (B+) Blue (B-), Weight 473g.
Traits: Nema 17 Stepper Motor 2 Part, Step angle 1.8‌dge (200 steps/rev), Holding torque 0.84Nm (118.95oz·in), Rated present 2.3A, Resistance 1.1Ω, Inductance 2.8mH±20%, Rotor inertia approx 115g.cm².
Security Compliance: This Nema 17 Stepper Motor boasts protected and dependable operation, with the next key security parameters. Dielectric power 500V A.C 1 MINUTE; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15percentRH～95percentRH; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Temperature rise 80K MAX.
Vital Issues: Elevated pace reduces torque, with operation recommended at 0–600 RPM. A decrease present results in decrease torque and temperature rise, and diminished voltage ends in decrease torque (really helpful vary: 12–24V DC). The 42mm Stepper Motor is utilized in varied functions like 3D printers, DIY robots, and CNC machines, providing a compact design and excessive torque for demanding duties.

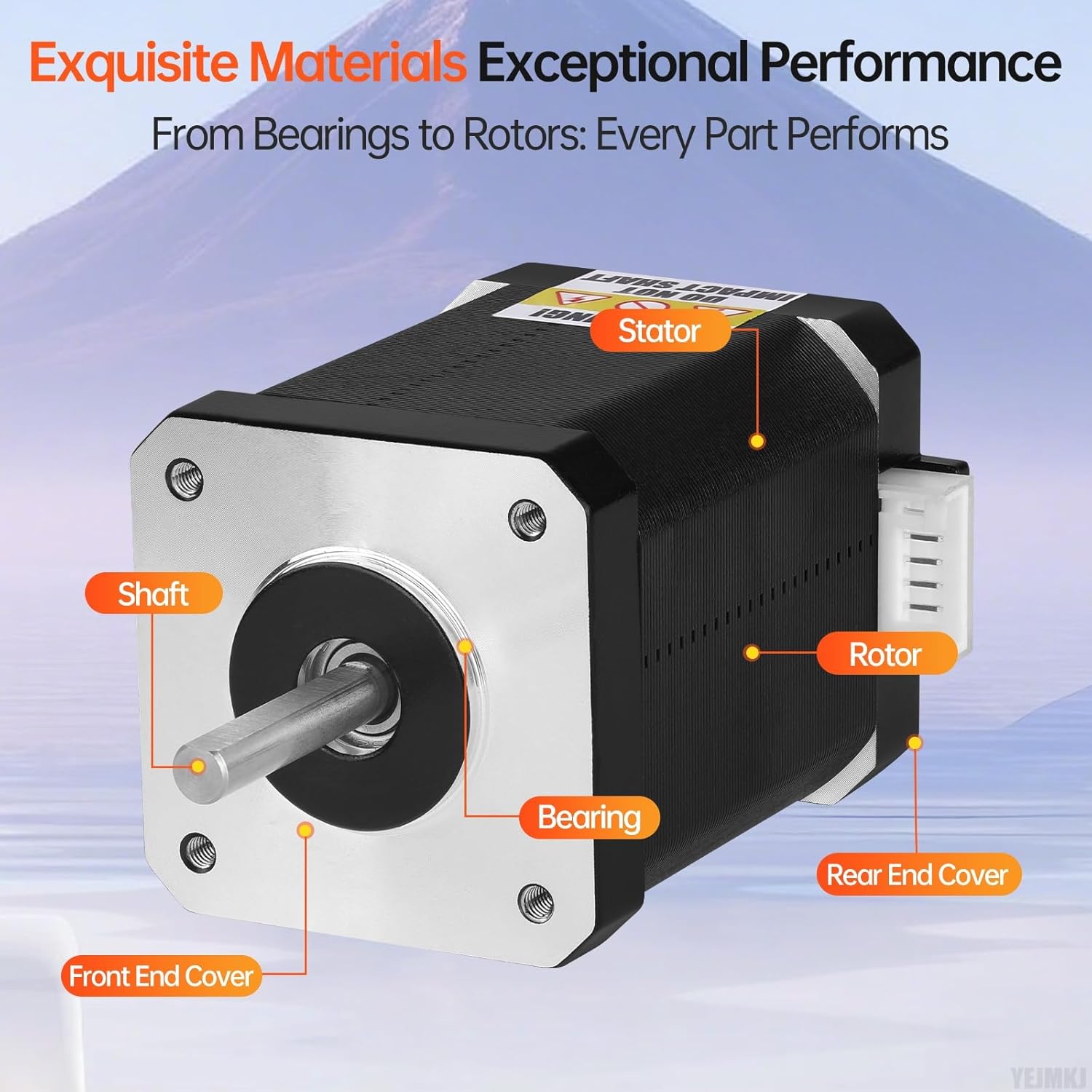

Superior Metal Building: Leveraging bolstered metal cores and meticulously wound coils, this Nema 17 Step Motor presents as much as 20% elevated holding torque versus normal models. Profit from a quieter operational profile and minimal environmental disturbance.
